Split page will take images from a page of standard size and divide them up into several images of the next smaller standard size. For example, Split page will produce two images of A4 size from one side of an A3 page. If both sides (front and back) of an A3 page are scanned, then Split page will produce four images of A4 size.

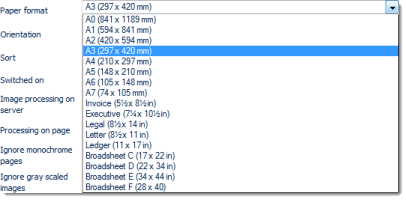

Paper format

Specify the size of the images which need to be split. This setting will limit processing to one source format, all other page sizes will be ignored. For example, when scanning a pile with mainly A4 pages and only a few interspersed A3 pages (which need to be split), then you would specify A3, as paper format.

Possible choices are:

Orientation

Specify whether the image has Landscape or Portrait orientation, so that Split page can operate accordingly.

Sort

Turns logical sorting on (checkbox ticked) or off. Logical sorting corresponds to the sequence which would result from folding the original page.

Switched on

Switches this module on or off. Ticking the checkbox will turn this function on. Removing the checkmark will turn this function off but will preserve all settings, for later use / manual activation.

Image processing on server

Image processing requires substantial amounts of CPU capacity. In order to relieve CROSSCAP Scan-Clients from these tasks and speed up all other processing, image processing functions may be selectively transferred to the CROSSCAP Enterprise server.

If this option is activated (checkbox ticked), then the execution of this function will be deferred and processed by the CROSSCAP Enterprise server, later on. Deferred image processing will occur during the pre-process workflow step (see chapter Getting started, section Workflow CROSSCAP Enterprise).

Please note: If any errors occur during image processing on the CROSSCAP Enterprise server, manual indexing (on the CROSSCAP Multi-Client) will be enforced (even if manual indexing was not specified in the project template).

Whenever image processing functions are transferred to the CROSSCAP Enterprise server, we generally recommend to specify separate quality checks and/or manual indexing, since there is no other chance to inspect (and possibly rectify) images processed by the server, prior to finalization.

Also, please take care to treat all interdependent image processing functions the same way, i.e. either run all of them on the CROSSCAP Enterprise server or have all of them processed by the CROSSCAP Scan-Client.

Processing on page

Limits this function to certain pages. Possible choices are:

• Both pages
• Front page
• Rear page

Ignore monochrome pages, Ignore gray scale pages, Ignore color pages

Specifically applies to multistream mode. If any of these three filters are set to on (checkbox ticked), then this function is turned off for the respective page types. Please note that combining all three options Ignore monochrome pages, Ignore gray scale pages and Ignore color pages will effectively turn off execution all together, since there are no images left to process.

Ignore blank pages

Turns this function off (checkbox ticked) for all blank pages (reduces CPU-load).
